Regenerative Air Dryers
These wall mounted Regenerative Air Dryers are simple, robust and a cost effective series. These dryers use proprietary technology to provide ultra clean, dryer air. Approximately every two minutes, airflow is redirected through the previously dried opposing canister(s) allowing any captured water, vapor, and particulates to be properly disposed of before entering the dryer.
Specifications
- Low relative humidity – down to .01% RH
- Dew points down to -80ºF
- Easy, low-cost maintenance – under $100/year average
- 3 year warranty on wall mounted dryers & ultra systems

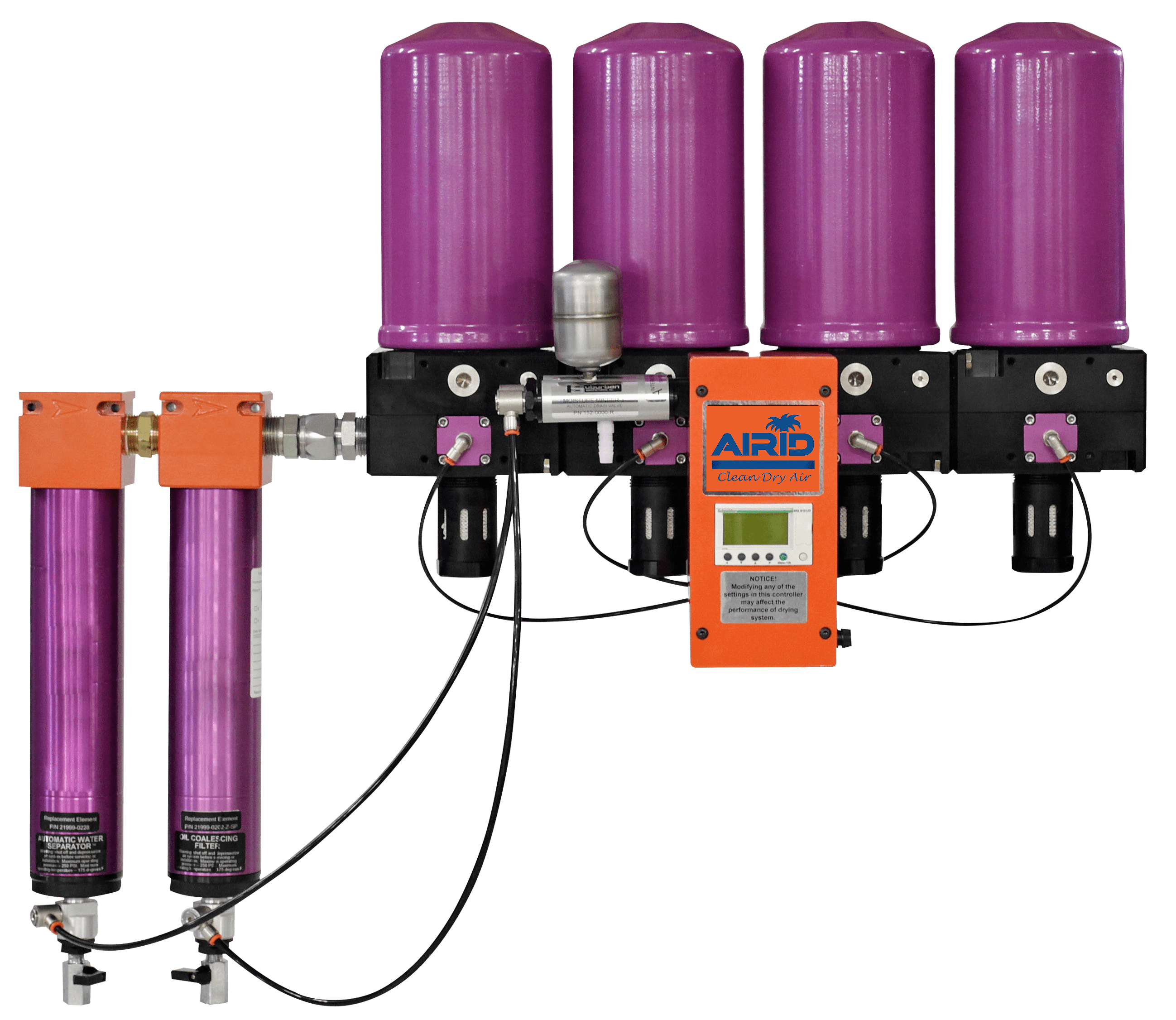

Wall Mounted
Wall mounted units come complete with pre-filtration, PLC, automatic drains & a mounting rail.
| SIZE | MAX FLOW | PORT SIZE | PART # |
|---|---|---|---|
| 10 HP | 40 SCFM | 1″ NPT | J-0710 |
| 15 HP | 50 SCFM | 1″ NPT | J-0715 |
| 20 HP | 80 SCFM | 1″ NPT | J-0720 |
| 30 HP | 120 SCFM | 1″ NPT | J-0730 |
