I-Beam Chain Lubricators

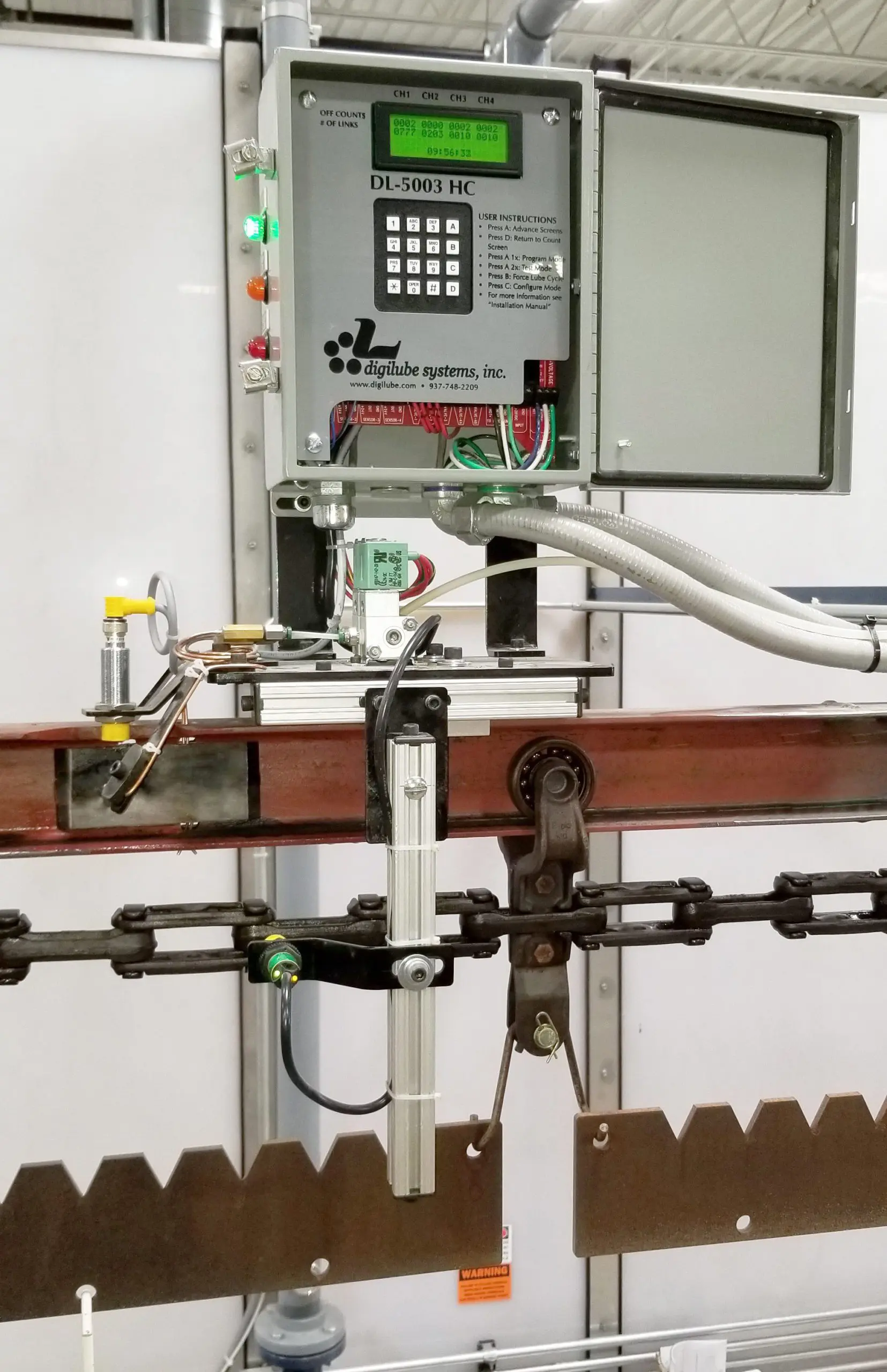

The Monorail I-Beam Chain Lubricator is usually located at the point of application and is available in several sizes: 2 inch, 3 inch, 4 inch and 6 inch.
It consists of the DL-5003 controller, and all the outputs, i.e. 24VDC solenoid valves and sensors, dispensing tubes and bracketry. It lubricates x-chain pins & open trolleys on an I-beam overhead conveyor.
The DL-5003 can control up to 4 different lube cycles with multiple lube points within each cycle. The conveyor lubricator is connected to a 1/4″ nylon lubricant supply tubing, which is connected to a 12 or 65 gallon lubricant tank located on or next to a support column for easy of filling. The lubricator comes mounted on a 2-foot section of I-beam rail or can be field installed on existing rail.
Features
- Microprocessor controlled
- Millisecond dispensing accuracy
- Field programmable security code
- Large 2-line LCD screen
- 4 independent channels
- Tracks lube usage per cycle
- Displays approximate line speed
- 16 button programmable key pad
- Sturdy dispensing tubes resist vibration
- Exclusive self-diagnostic feature available
- PC interface contacts (optional PLC contacts)
- Automatic fault shut-down
- All electronic
- 1 year warranty
- 3 year microprocessor warranty
Specifications
| POWER SOURCE | 120VAC OR 24VDC |
| DIMENSIONS | 19”L x 24”H x 12”W |
| LUBRICANT POINTS | CHAIN PINS & OPEN TROLLEYS |
Models
| 2 INCH | DL-211, DL-222 |
| 3 INCH | DL-311, DL-322, DL-331, DL-332, DL-333 |
| 4 INCH | DL-411, DL-422, DL-432, DL-433 |
| 6 INCH | DL-611, DL-622, DL-632 |
