Conveyor Lubricating System – Head Controller

Head Controller Microprocessor

Keep Things Moving with Digilube’s Advanced, Precise Delivery for Conveyor Lubrication Equipment

Keeping your conveyors running in top shape requires precise delivery of lubricant to the wear points on your chain conveyor or machine. So that’s exactly what the Digilube Conveyor Lubricating System provides. Our incredible microprocessor, the DL-5003 head controller, gives you total control and flexibility for adding lubrication system points as you grow.

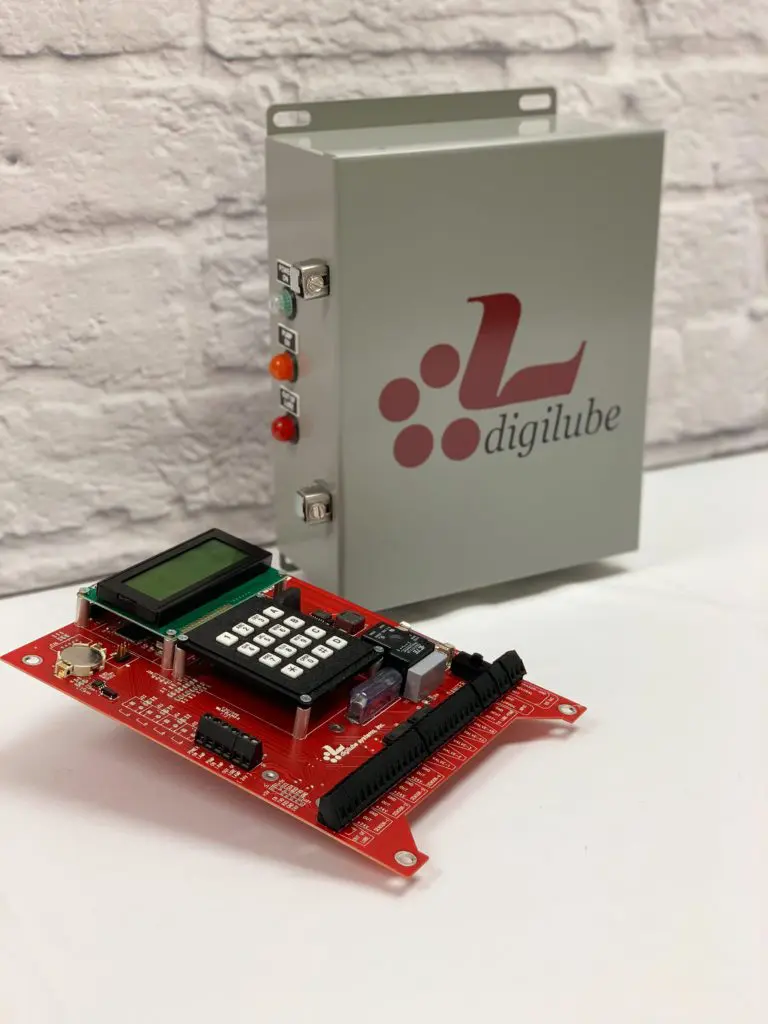

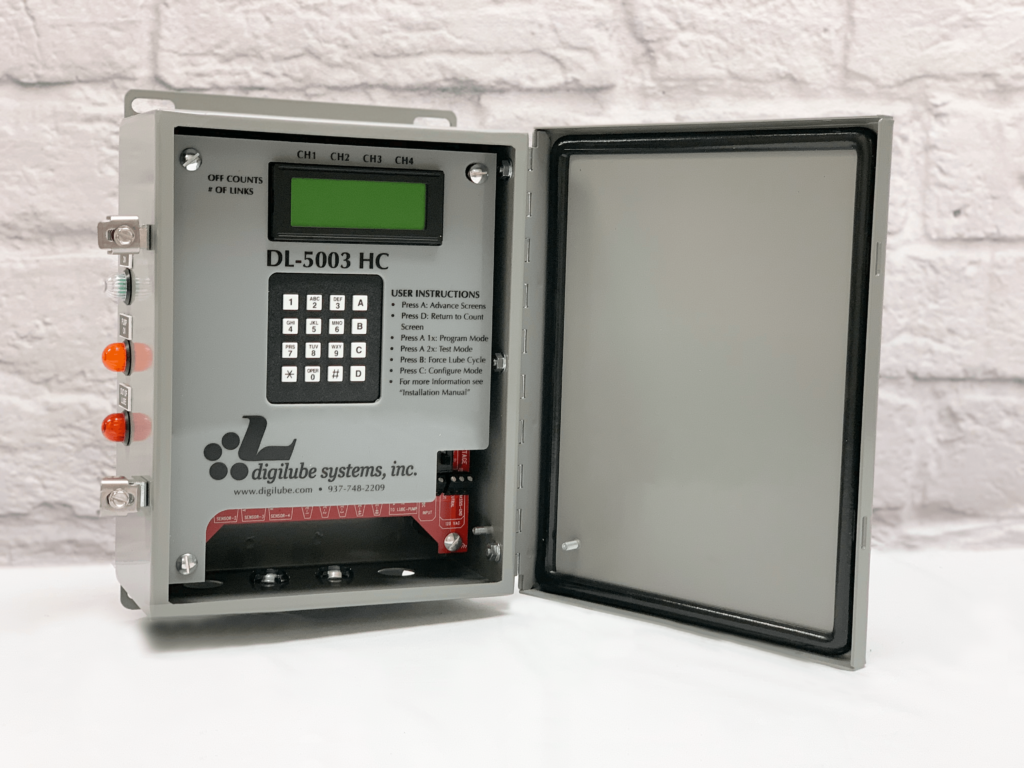

DL-5003 Head Controller Microprocessor

Digilube’s Programmable Lubricators provide Pinpoint Accuracy of Lubricant to many Different Types of Conveyors’ Lube Points, including:

  • Chain Pins
  • Open Trolley Bearings
  • Free Carries
  • Swivels
  • Cat Drive Chains
  • Roller Chains

Get Years of Trouble-Free Lubrication

You can Count on the DL-5003 Head Controller, the Most Advanced, Easy-to-Use Microprocessor in the Industry. It’s Factory Tested and Backed by a Three-Year Warranty.

Features

  • Millisecond Dispensing Accuracy
  • Field Programmable Security Code
  • Exclusive Self-Diagnostic Feature Available
  • PC Interface Contacts (Optional PLC Contacts)
  • Four Independent Channels
  • Displays Approximate Line Speed
  • Tracks Lube Usage Per Cycle
  • Programmable by Tie or Signal Input
  • Status Indicators on Side of Enclosure
  • Real Time Clock-Battery Backup
  • Automatic Fault Shut-Down
  • Nema 12, 13 Enclosure
  • All Electronic

Specifications of the DL-5003 Head Controller

POWER SOURCE120VAC or 24VDC
DIMENSIONS8″W x 10″H x 4″D
WEIGHT12 LBS.

Digilube’s Conveyor Lubrication Equipment is Easy to Use

Great Equipment is User Friendly. That’s why the DL-5003 Head Controller Simplifies Lubrication in a Wide Variety of Conveyors and Machines. A Large, Two-Line LCD Screen and 16-Button Programmable Keypad Provide On-Screen Instructions for Programming the Unit and Adjusting the Lubricator for your Particular Conveyor.

How Valuable is Hassle-Free Operating to your Business?

Find out How we can Help you be More Efficient & Check out our complete line of products
