Automatic Grease Lubricators
Digilube Systems is proud to be a distributor and filling station for ATS Electro-Lube, which manufactures the industry’s best performing point of use automatic grease lubricators. The lube solutions are reliable, safe, and labor-saving alternatives to manual lubrication, for single or multiple lube points by using the progressive distribution blocks. The Lubers can provide up to two full years of continuous lubrication and can be mounted nearly anywhere, including remote setups as much as 30’ from the lubrication point. With the full line of self-contained automatic lubrication products, you’re sure to find the perfect lube solution for your application.
OUR LUBE SOLUTIONS

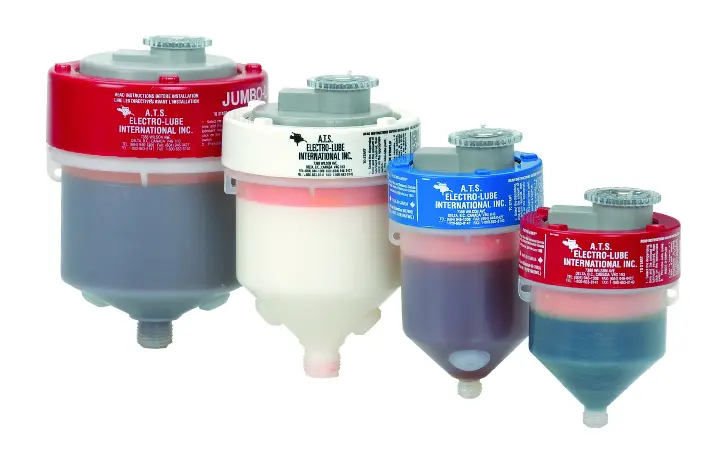

- Gas-Driven Lubricant Dispenser – 50 PSI
- Single Point Application
- Four size options – 2oz (60cc), 4oz (125cc), 8oz (250cc), and 16oz (475cc)
- Non-Refillable – Single Use – Recyclable
- Takes AA Alkaline Batteries
- Motor-Driven Lubricant Dispenser – 900 PSI
- Single or Multi-Point Application (up to 12 points)
- Four size options – 2oz (60cc), 4oz (125cc), 8oz (250cc), and 17oz (500cc)
- Battery or Electric

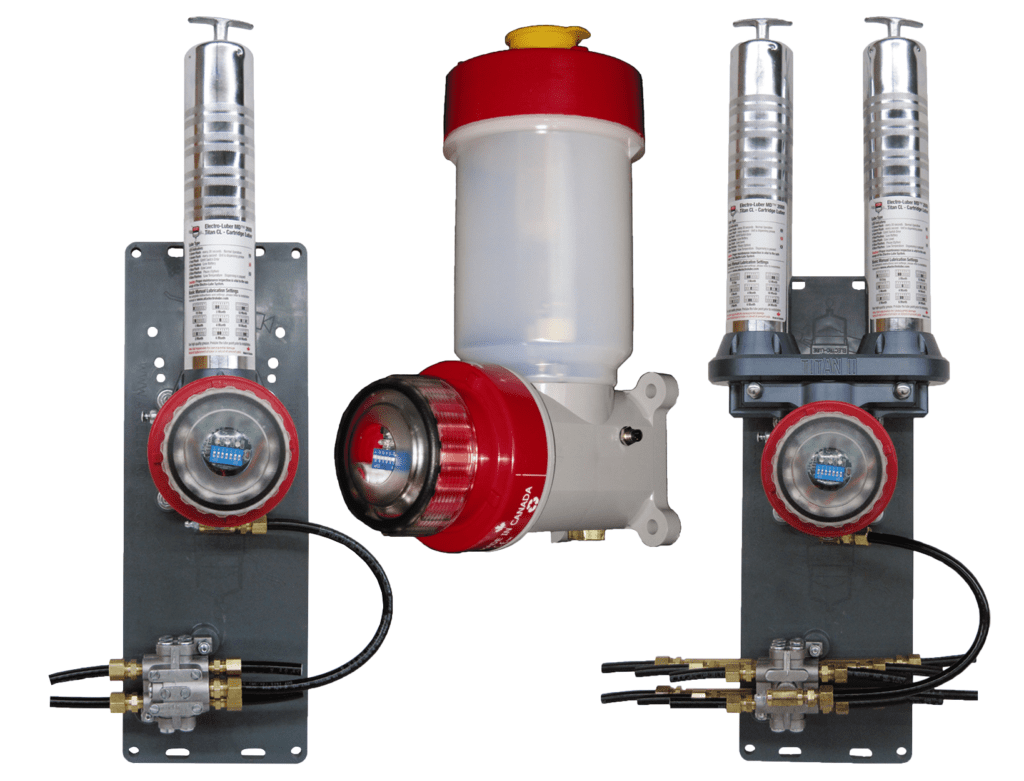

- Motor-Driven Cartridge Lubricant Dispenser – 900 PSI
- Single or Multi-Point Lubrication (up to 12 points)
- Three types & size options: Titan (14oz), Titan II (28oz) & Titan Oiler (47oz)
- Battery or Electric
- Motor-Driven Cartridge Lubricant Dispenser – 900 PSI
- Single or Multi-Point Lubrication (up to 12 points)
- Three types: Titan, Titan II & Titan Oiler
- Two size options: 4 oz (125cc) and 8 oz (250cc)
- Battery or Electric

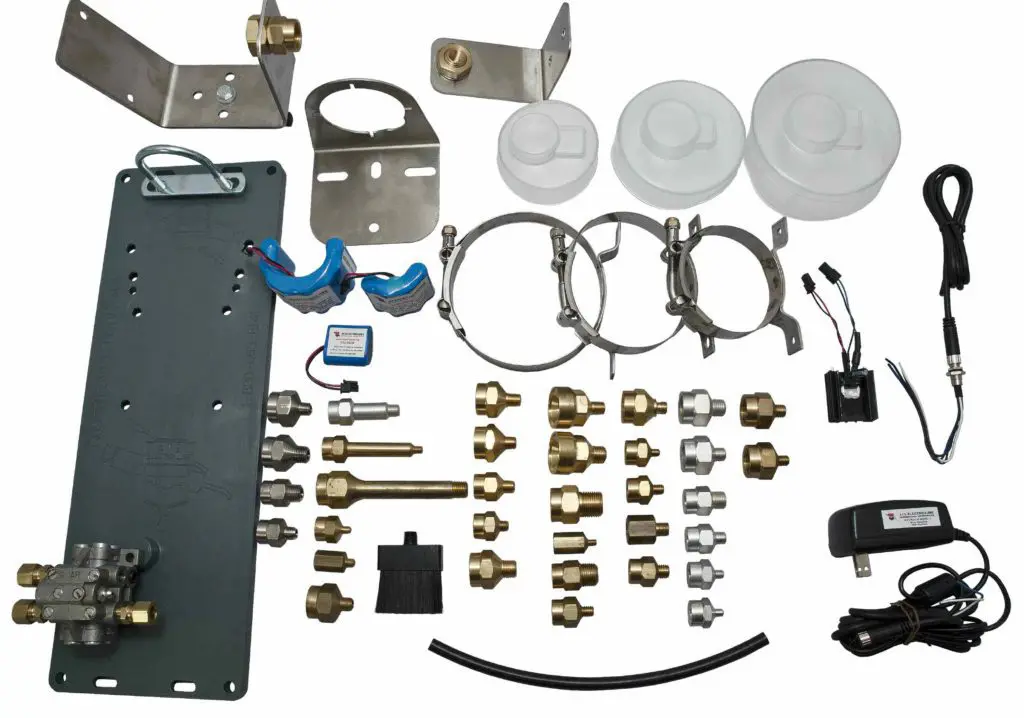

- Mounting Plates (single-point & multi-point)
- Replacement Battery Packs (Ultimate & Titan Series)
- AC Power Supplies (Ultimate / Titan Series)
- Mounting Adapters and Reducers
- Oil Brush
- Mounting Brackets
- Weather Caps
- Oil Check Valves
- Hose and Fittings
- Distribution Blocks (2-12 ports)
THE GREASE DISPENSERS WE OFFER:
| ELETRO-LUBER SERIES | ULTIMATE SERIES | TITAN SERIES | JACK SERIES | |
|---|---|---|---|---|
| APPLICATION | Single-Point | Single or Multi-Point (Up to 12 points) | Single or Multi-Point (Up to 12 points) | Single or Multi-Point (Up to 12 points) |
| SIZES | 2oz (60cc) 4oz (125cc) 8oz (250cc) 16 oz (475cc) | 2oz (60cc) 4oz (125cc) 8oz (250cc) 17 oz (500cc) | Titan (14oz) Titan II (28 oz) Oiler (48oz) Requires 1 or 2 – 14 oz. Grease Cartridges | 4 oz (125cc) 8 oz (250cc) |
| TECHNOLOGY | Safe, Inert Nitrogen Gas Powered | Powerful Mechanical Fixed-Displacement Pump | Powerful Mechanical Fixed-Displacement Pump. Proven Ultimate Series Technology | Powerful Mechanical Fixed-Displacement Pump. Jackscrew Mechanism Incorporated with Proven Ultimate Series Technology |
| DISPENSING POWER | Up to 50 PSI. Can be remote mounted up to 3ft. Distribution blocks available | Up to 900 PSI. Can be remote mounted up to 30ft. Distribution blocks available | Up to 900 PSI. Single Point can be remote mounted up to 30ft. Distribution blocks available | Over 200 PSI. Single point can be remote mounted up to 30ft. Distribution blocks available |
| POWER SOURCE | N/A | Battery pack or remote AC/DC power. Optional lithium battery pack | Battery pack or remote AC/DC power. Optional lithium battery pack | Battery Pack or remote AC/DC power |
| CYCLE | Single use, Disposable / Recyclable | Refillable with Standard Grease Gun or Pump | Refillable with Standard Grease Cartridge(s). Oiler refillable through screened port | Reusable Motor Drive Unit and easily replaceable Single-Use Cartridge |
| LUBE CHOICE | Customer Specified Lube | Customer Fill / Refill | Customer Fill / Refill | Customer Specified Lube |
| OPERATING SPAN | 15 days to 1 year on factory filled unit | Refilled as needed. Variable from 15 days to 2 years | Cartridge replaced or oiler refilled as needed. Variable from 15 days to 2 years | Cartridge replaced as needed. Variable from 15 days to 2 years |
| LED INDICATORS | Positive verification unit is working | Tri-color LEDs to indicate normal operation, low battery, low temp | Tri-color LEDs indicate normal operation, low battery, low lube level, low temp. Oiler has low lube indicator | Tri-color LEDs indicate normal operation, low battery |
| WEATHERPROOF | Waterproof (submerged) to 30ft. Temp range: -40ºF to 131ºF (-40ºC to 55ºC Weathercap available | Suitable for outdoor use in temp range 5ºF to 132ºF (-15ºC to 55ºC) Weathercap included | Suitable for outdoor use in temp range 5ºF to 132ºF (-15ºC to 55ºC). Weathercap included for cannister and control unit | Suitable for outdoor use in temp range -40ºF to 140ºF (-40ºC to 60ºC). Weathercap included |
| DISPENSING RATE | Established flow-rates, simply select and install | Standard timed intervals or custom programming available | Standard timed intervals or custom programming available | Standard timed intervals or custom programming available |
| APPROVALS | UL & Cul approved Intrinsically safe for all areas; MSHA, Energy Mines Canada IECx BAS 11.0121x & 11.0120x | Class I, Groups A, B, C, D, Div 2 Class II, Div 2, Groups F & G Class III Hazardous Locations | Class I, Groups A, B, C, D, Div 2. Class II, Div 2, Groups F & G. Class III hazardous locations. | Class I, Groups A, B, C, D, Div 2. Class II, Div 2, Groups F & G. Class III hazardous locations. |
