Ultimate Luber Series

Ultimate Luber Series

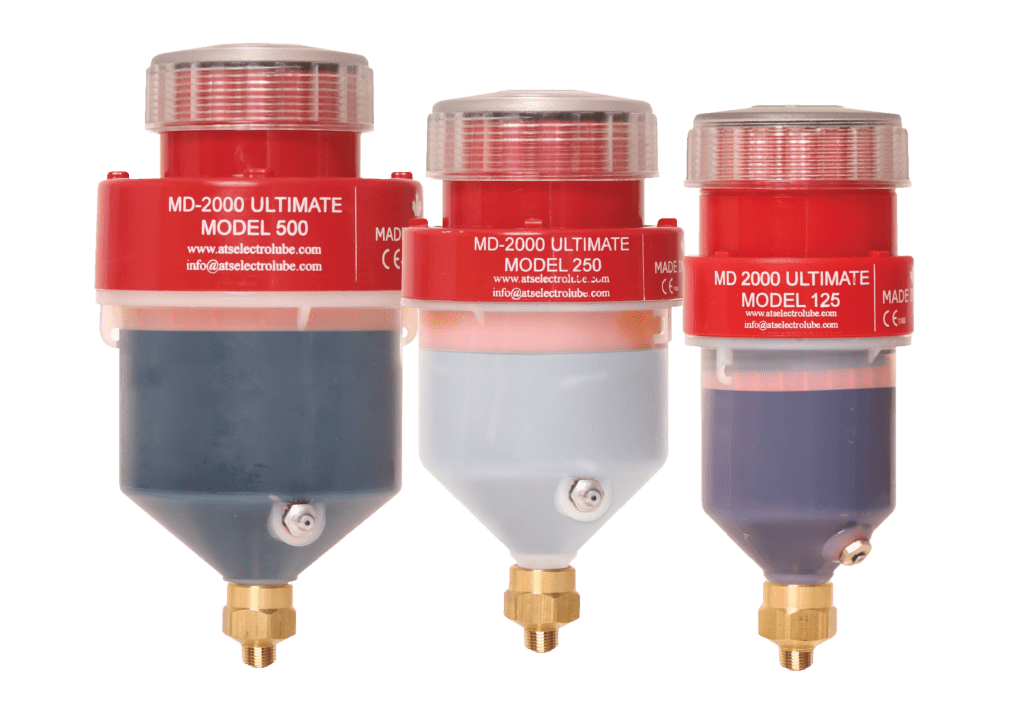

The Ultimate Luber is a powerful, motor-driven automatic lubrication which is refillable using standard grease guns. It’s microprocessor-controlled, energy-efficient motor delivers grease to a fixed-displacement pump that produces pressures over 1000psi.

This strength allows the Ultimate Luber to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a dispensing cycle is selected, the units will activate at programmed internals. At each interval, the Ultimate Luber™ dispenses approximately 1.25cc of grease. Neither temperature nor altitude will affect the lubricant output.

Specifications

  • Most powerful automatic lubrication system on the market. Produces over 1000psi, which enables it to service single-point applications up to 30’ away (9m) and multi-point applications up to 20’ (6m) away.
  • UL/CUL Div. 2 Hazardous Area approved.
  • Single or Multi-point configuration.
  • Refillable using a standard grease gun (no other tools needed).
  • Able to service up to 12 lube points with optional progressive distribution block.
  • Available with long-life replaceable battery packs or optional external power sources. (AC and DC)
  • Optional Remote Control available to connect to customer machinery or control equipment. (e.g. PLC, Contractors, Relays)
  • Suitable for indoor-outdoor use.
  • Optional easy to install mounting brackets and mounting plates for either single-or multi-point applications are available.
  • Multiple settings to empty from 15 days to 2 years.
  • Operating range from -4ºF-131ºF (-20ºC to 55ºC) Note: Low-Temp lubricants may be used at low temperatures.
  • The Ultimate has an internal blender to minimize grease separation and enhance lube consistency.

Size & Dimensions

MICRO LUBER6 oz – 60cc7 1/4″ high x 3 1/2″ diameter
MINI LUBER4oz – 125cc7 1/2″ high x 3 1/8″ diameter
BUDGET LUBER8oz – 250cc7 1/2″ high x 4″ diameter
JUMBO LUBER17oz – 500cc8 3/4″ high x 4 3/4″ diameter
REQUEST A QUOTE TODAY ON ULTIMATE LUBERS FOR YOUR APPLICATION
Ultimate Luber Series.  Automatic Lubrication in the Field.

Ultimate Luber Installation

Learn more about the Ultimate Lubers
