Lubricant Tanks

Digilube’s Lubrication Equipment offers three sizes of Lubricant Tanks. Our 6, 12 and 65 gallon lubricant tanks allow for a range of choices depending on your conveyor high temperature lubricant needs. These lubricant tanks are versatile and can be used for many different type of automatic lubrication. For example: Enclosed track lubrication, monorail i-beam rail lubrication, power & free lubrication, in-floor lubrication, oven conveyor lubrication.

These lubricant tanks are used in a variety of industries, including automotive, powdering coating, food processing, aerospace, gypsum, just to name a few. These are designed to provide high temperature lubricant to both single and multiple conveyors.

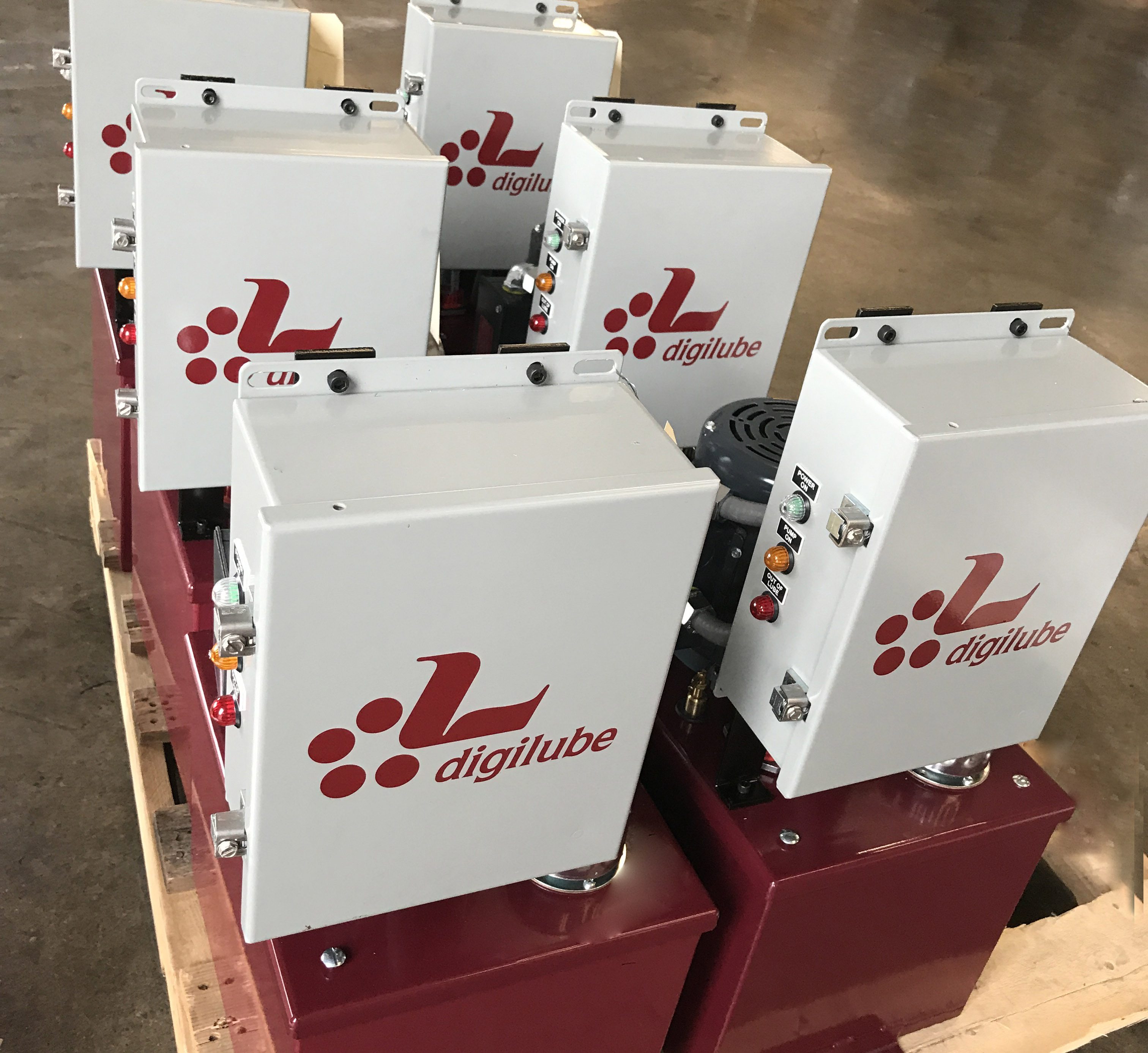

6 Gallon Tank: DL-806

Our Self Contained Lubrication System offers a conveyor lubricator that is installed on a section of rail for easy installation. The 6 gallon and 12 gallon tanks are used for small to medium single conveyors that are mounted on or close to a column for ease of filing. Selecting the size of conveyor is determined by amount of lubricant required. A ¼” nylon tubing is typically used to connect the lubricant tank to the lubricator on the conveyor.

SPECIFICATIONS

DIMENSIONS18 1/2"H x 12 1/2"W x 15"L 60
PLACEMENTCan be mounted on the conveyor track in the back of the lubricator or positioned waist high on a column for easy filling
POWER SUPPLYThe DL-9000 power supply comes in either 115VAC or 24 VDC output


12 Gallon Tank: DL-812

Our 12 Gallon Tank is a popular choice for customers that have moderate chain lube usage. Because our microprocessors can be mounted to our tanks, the correct amount of chain lubrication will be placed onto your line, striking the delicate balance between over and under lubrication.

SPECIFICATIONS

DIMENSIONS22 1/2" H x 12 1/2" W x 15"L WT75#
PLACEMENTPositioned waist high on column for easy filling
POWER SUPPLYThe DL-9000 power supply comes in either 115VAC or 24 VDC output
COMES WITH OR WITHOUT A DL-9000 POWER SUPPLY

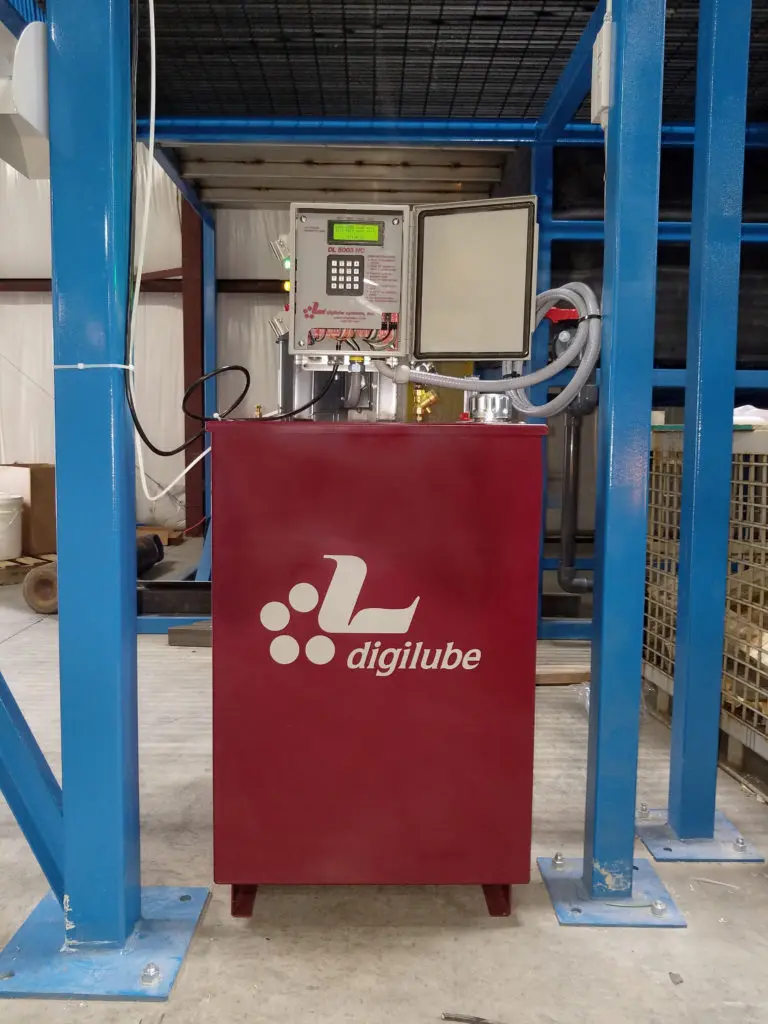

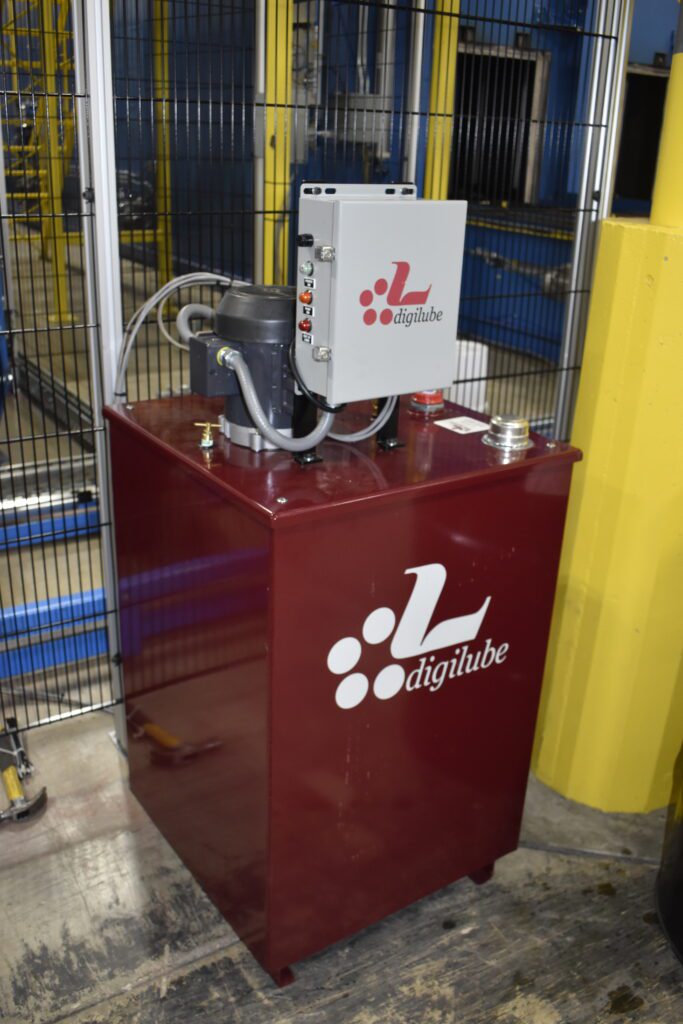

65 Gallon Tank: DL-865

The 65 gallon lubricant tank is used when greater amounts of conveyor lubricant are used either due to greater lengths of the chain, or multiple conveyors tied to the lubricant tank. This is especially true when the conveyor chains are subjected different processes like powder coating, organic and inorganic coatings, etc. Most of the time, these conveyors go through washers and high temperature ovens which increase high temperature conveyor lubricant consumption.

SPECIFICATIONS

DIMENSIONS49"H x 22 1/2"W x22 1/2"L WT210#
PLACEMENTThe tank is designed to provide lubricant from a single source to multiple lubricators
POWER SUPPLYThe DL-9000 power supply comes in either 115VAC or 24 VDC output
COMES WITH OR WITHOUT A DL-9000 POWER SUPPLY


Pairing our lubricant tanks with our lubricators, our DL-5003 Head Controller and our conveyor lubricant provides a vital component to the overall productivity of your conveyor; through longer chain wear, elimination of chain surge due to improper lubrication, elimination of product contamination from lubricant buildup and over lubrication.

Our automatic conveyor lubrication equipment and high temperature conveyor lubricant backed by trained field technicians will keep your conveyor working in optimum working condition. Weekly, Monthly, Quarterly? Discussing your system with a Digilube representative will help you determine what size is right for your application. Determining factors include length of chain, amount and type of conveyors, load, temperature and other processes.

Learn more by reading the brochure

Go to Brochure
