Air Filtration Packages
AIRID Pneumatic Air Filtration Systems are your solution for the unexpected surges ordinary filters cannot handle. The AIRID Series comprised of Tsuanmi’s product line, offers maximum protection to accommodate any application. What separates AIRID from other manufacturers is that our filters are machined from 6061 aluminum and are anodized for maximum corrosion resistance, inside and out. This prevents rust and other corrosion from forming inside the filter housings unlike filters manufactured out of die cast materials.
AIRID pneumatic air filtration packages are available in up to three stage packages including water separators, oil coalescing filters and activated carbon filters. Our filtration packages come standard with float drains where water separators and oil coalescing filters are used.
Pneumatic Air Filtration Packages
| Package # | #1 | #2 | #3 | #4 | #5 | #6 | #7 | #8 |
|---|---|---|---|---|---|---|---|---|
| 20 SERIES | J-0416 | J-0415 | J-0424 | J-0677 | J-0421 | J-0678 | J-0494 | J-0414 |
| 50 SERIES | J-0247 | J-0249 | J-0251 | J-0253 | J-0255 | J-0257 | J-0494 | J-0679 |
| 120 SERIES | J-0248 | J-0250 | J-0252 | J-0254 | ——– | ——– | ——– | ——– |

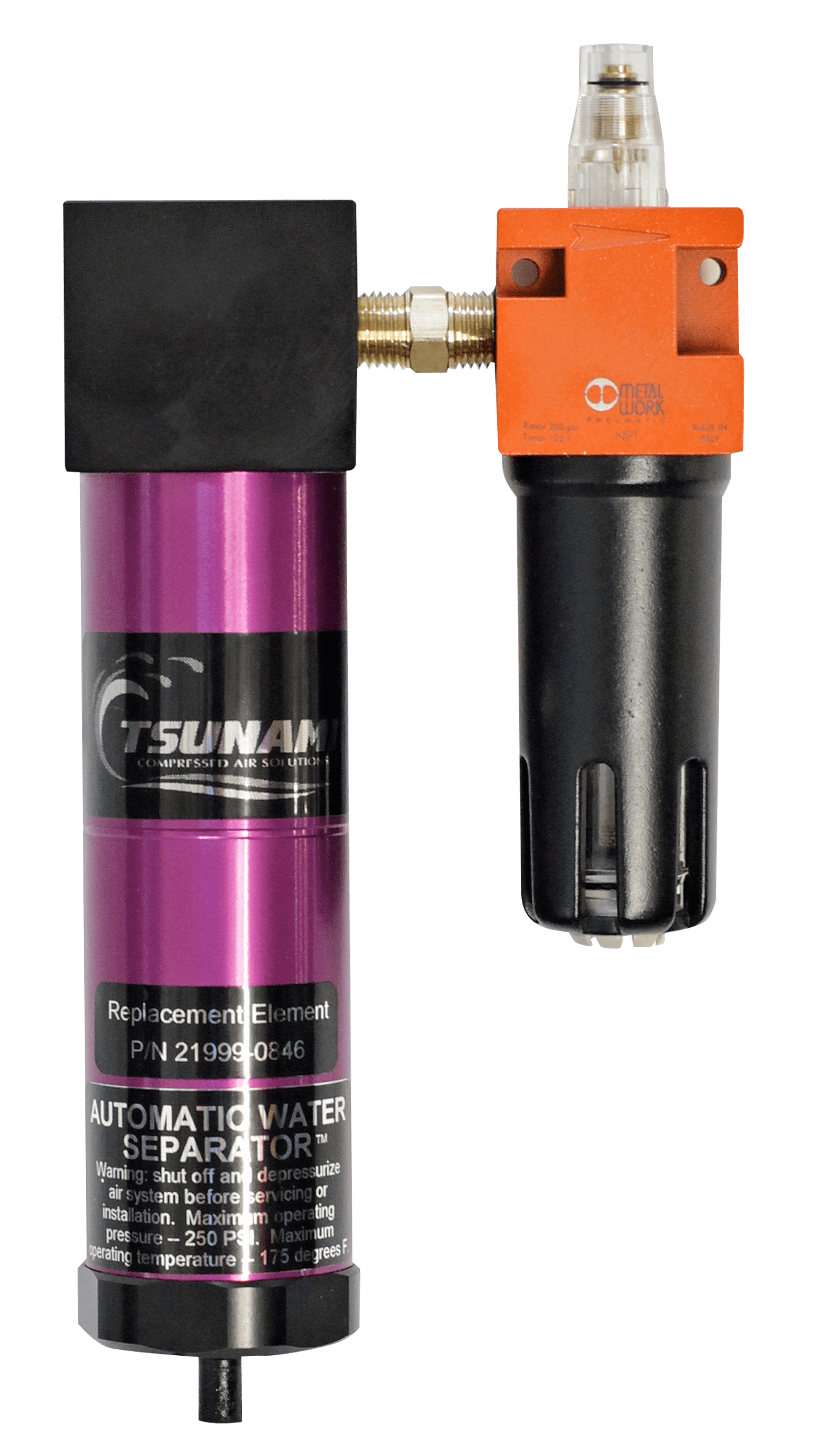

Package #1
Includes: Water Separator & Lubricator
Typical Applications
- Air Tools
- Tire Changers
- Automotive Lifts
- Robotics
- Machine Tool

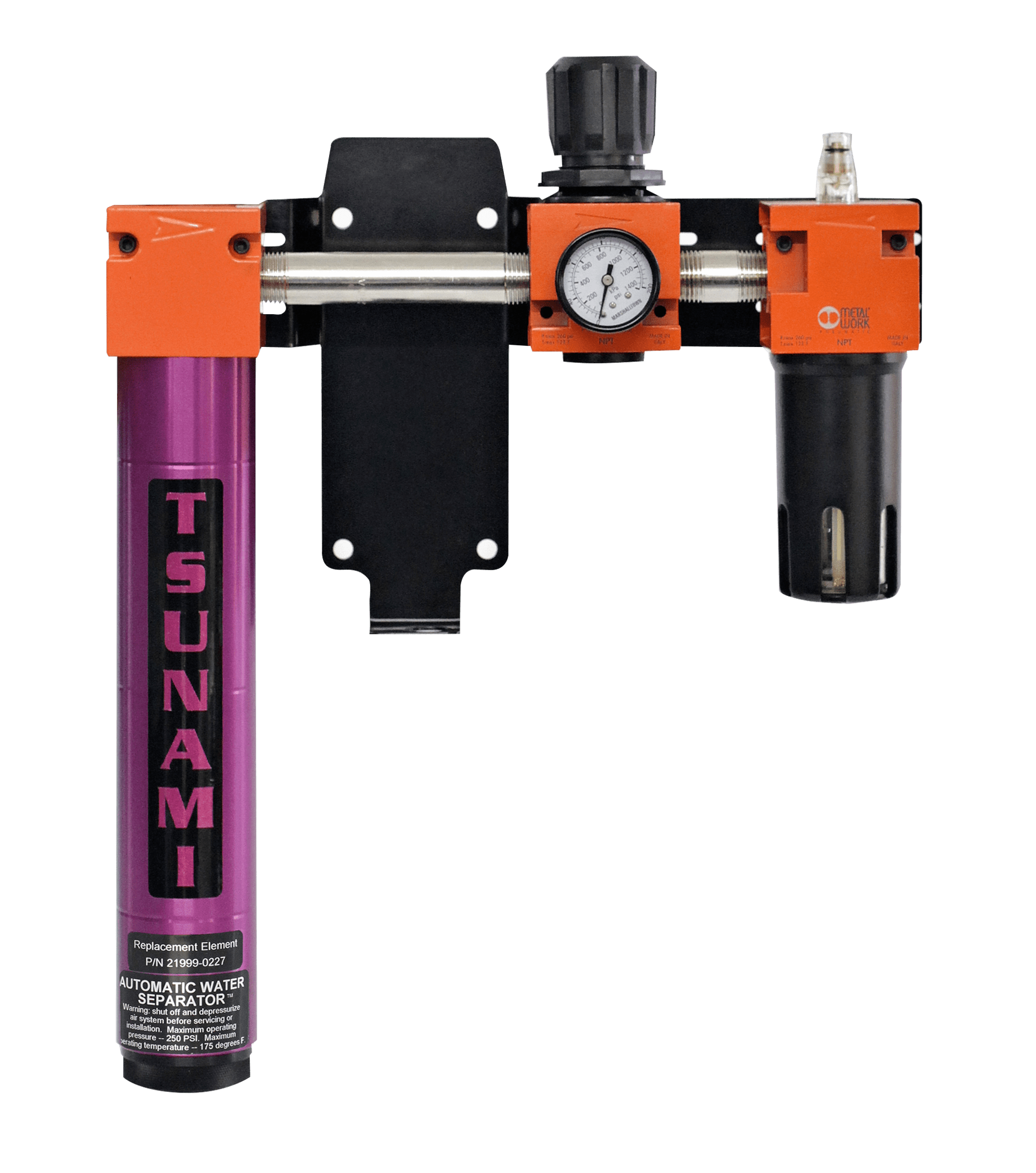

Package #2
Includes: Water Separator, Regulator & Lubricator
Typical Applications
- Air Tools
- Tire Changers
- Automotive Lifts
- Robotics
- Machine Tool

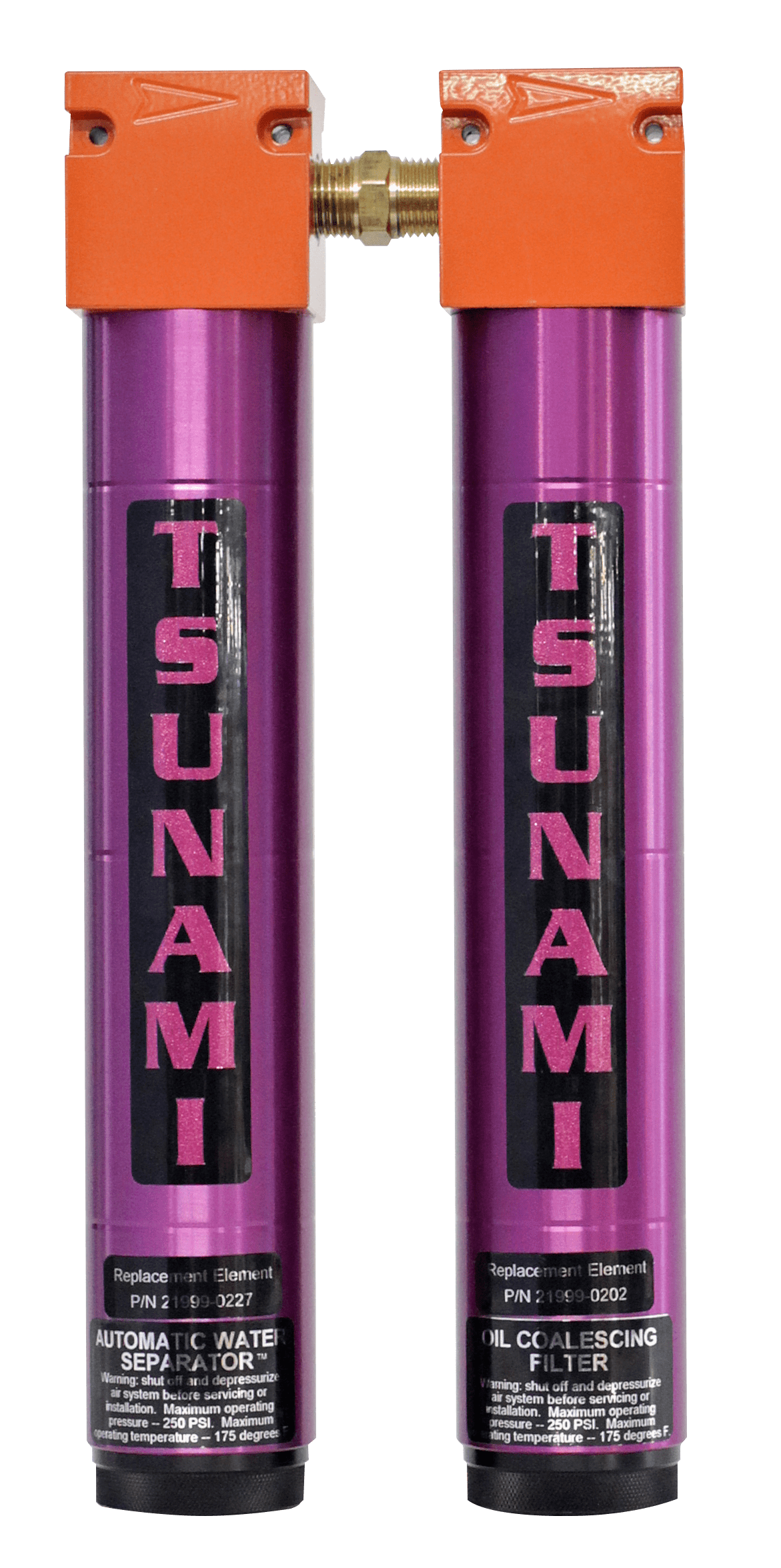

Package #3
Includes: Water Separator & Oil Coalescing Filter
Typical Applications
- Industrial Painting
- Plasma Cutting
- Nitrogen Generators
- Critical Automation

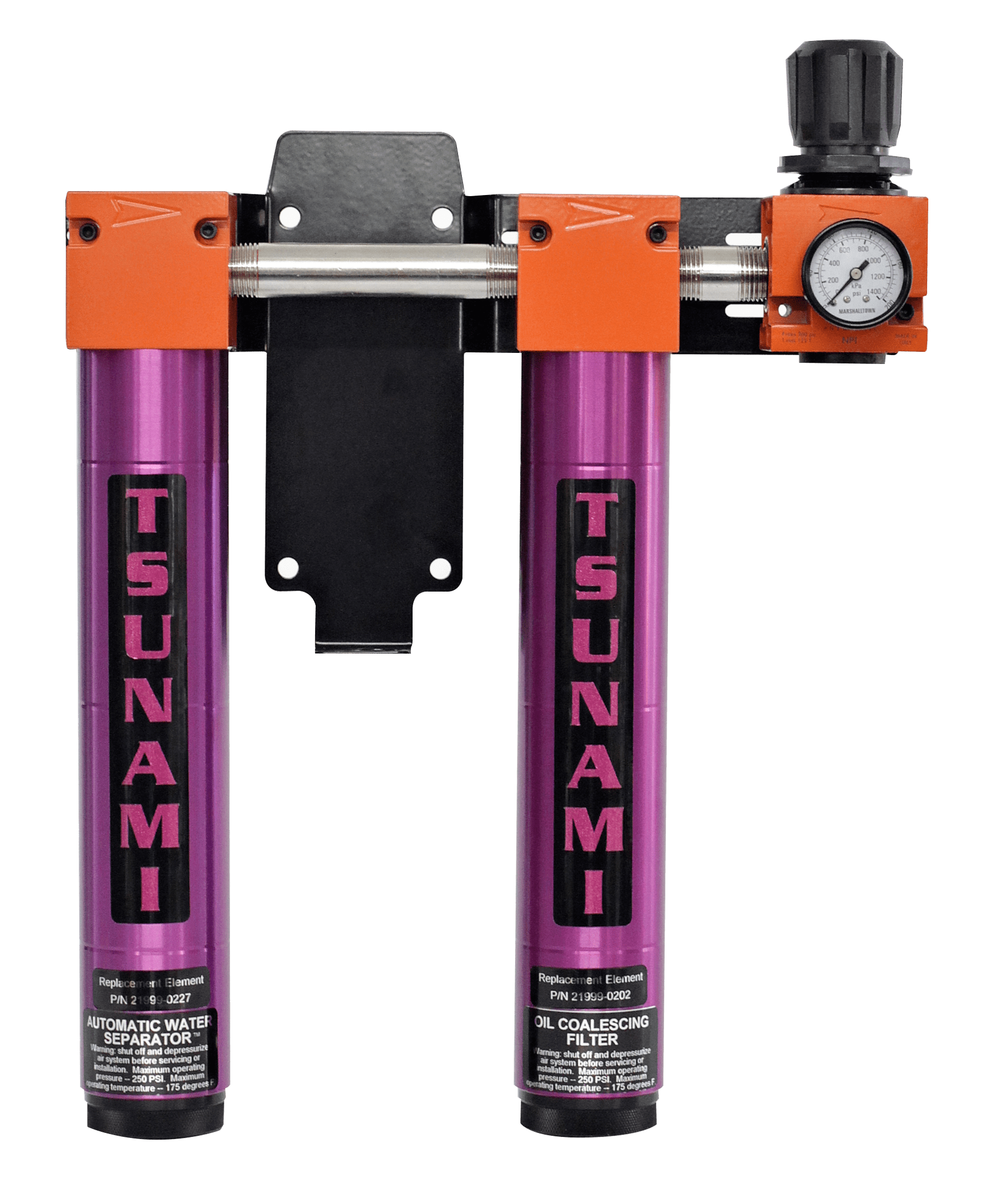

Package #4
Includes: Water Separator & Oil Coalescing Filter & Regulator
Typical Applications
- Industrial Painting
- Plasma Cutting
- Nitrogen Generators
- Critical Automation

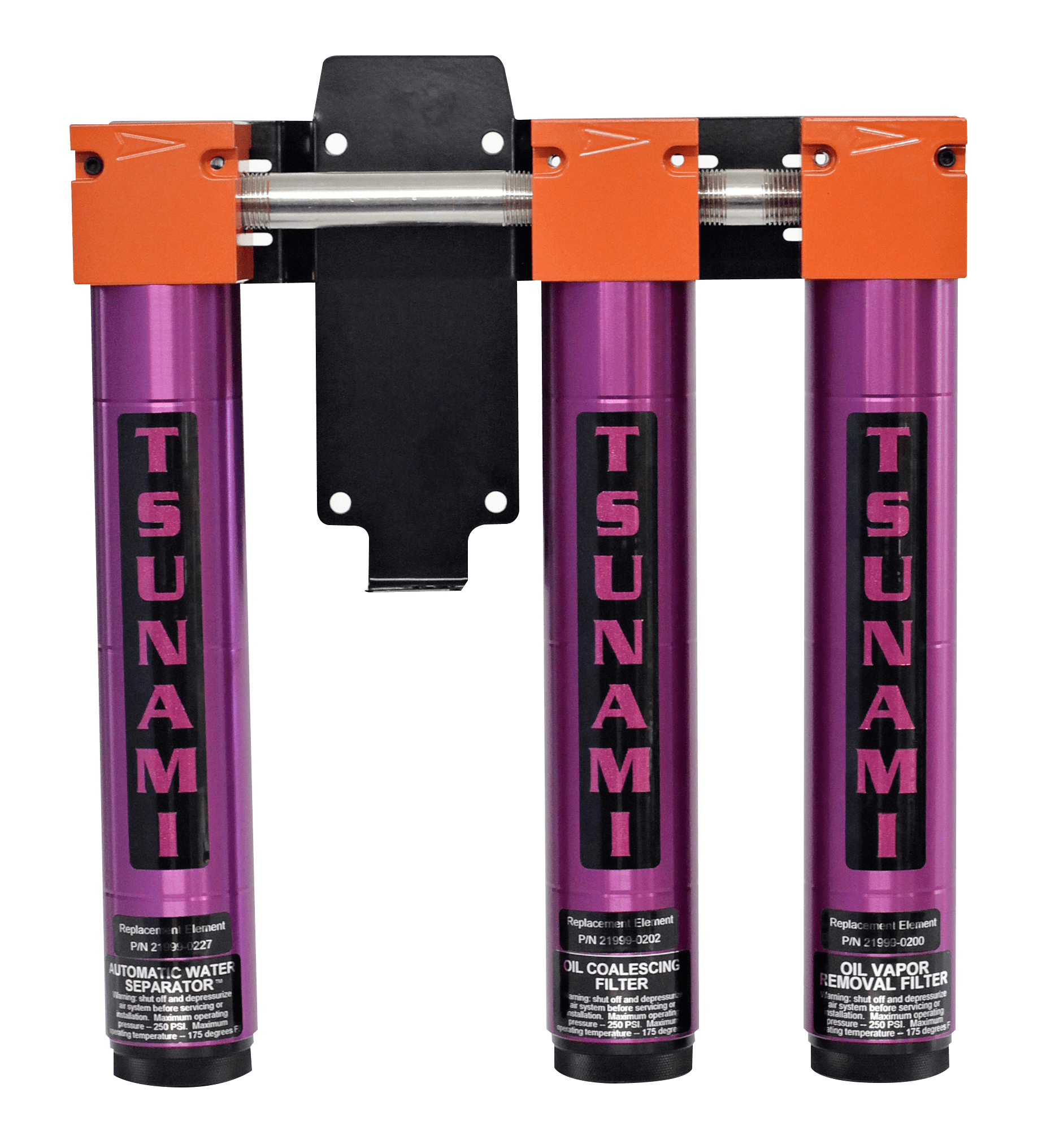

Package #5
Includes: Water Separator & Oil Coalescing Filter & Activated Carbon Filter
Typical Applications
- Laser Cutters
- Automotive Painting
- Inspection Rooms
- Precision Equipment
- Medical
- Air Bearings
Package #6
Includes: Water Separator, Oil Coalescing Filter, Activated Carbon Filter & Regulator
Typical Applications
- Laser Cutters
- Automotive Painting
- Inspection Rooms
- Precision Equipment
- Medical
- Air Bearings

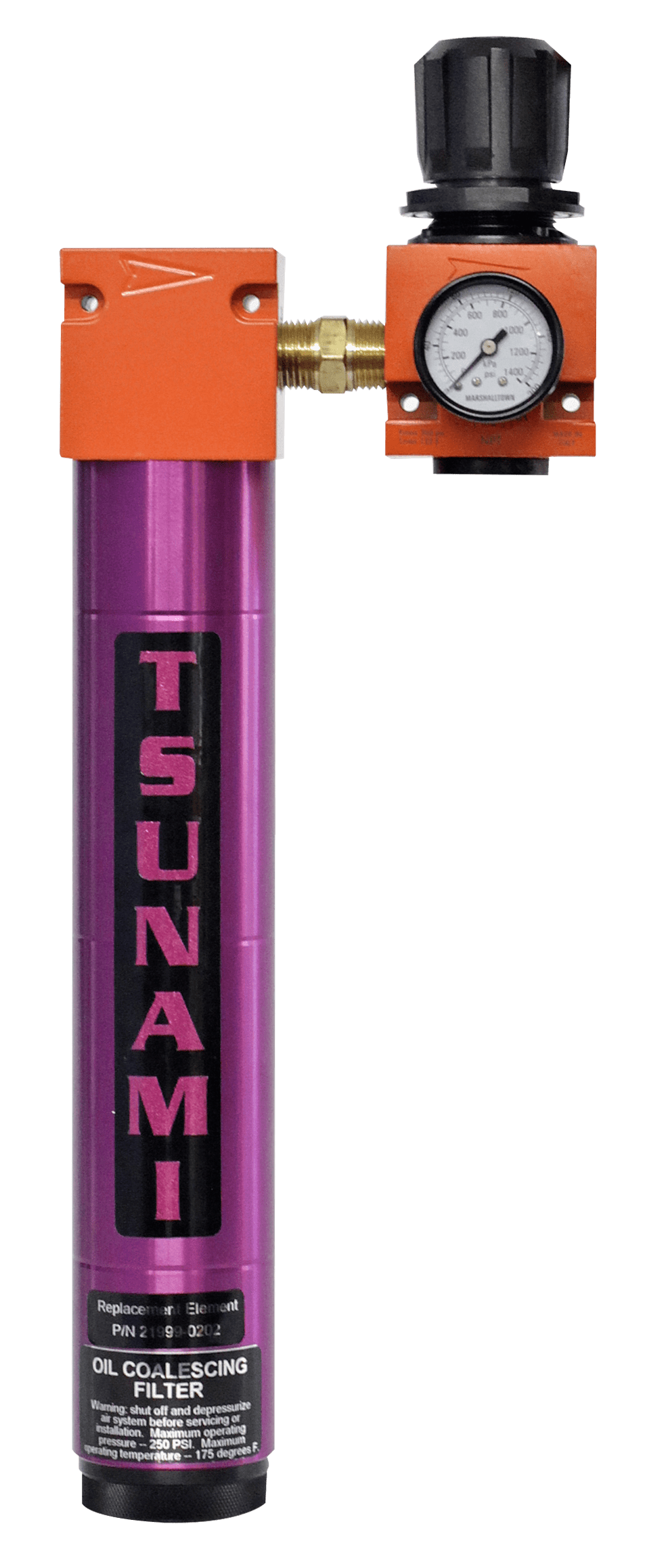

Package #7
Includes: Oil Coalescing Filter & Regulator
Typical Applications
- Air Tools
- Tire Changers
- Automotive Lifts
- Robotics
- Machine Tools

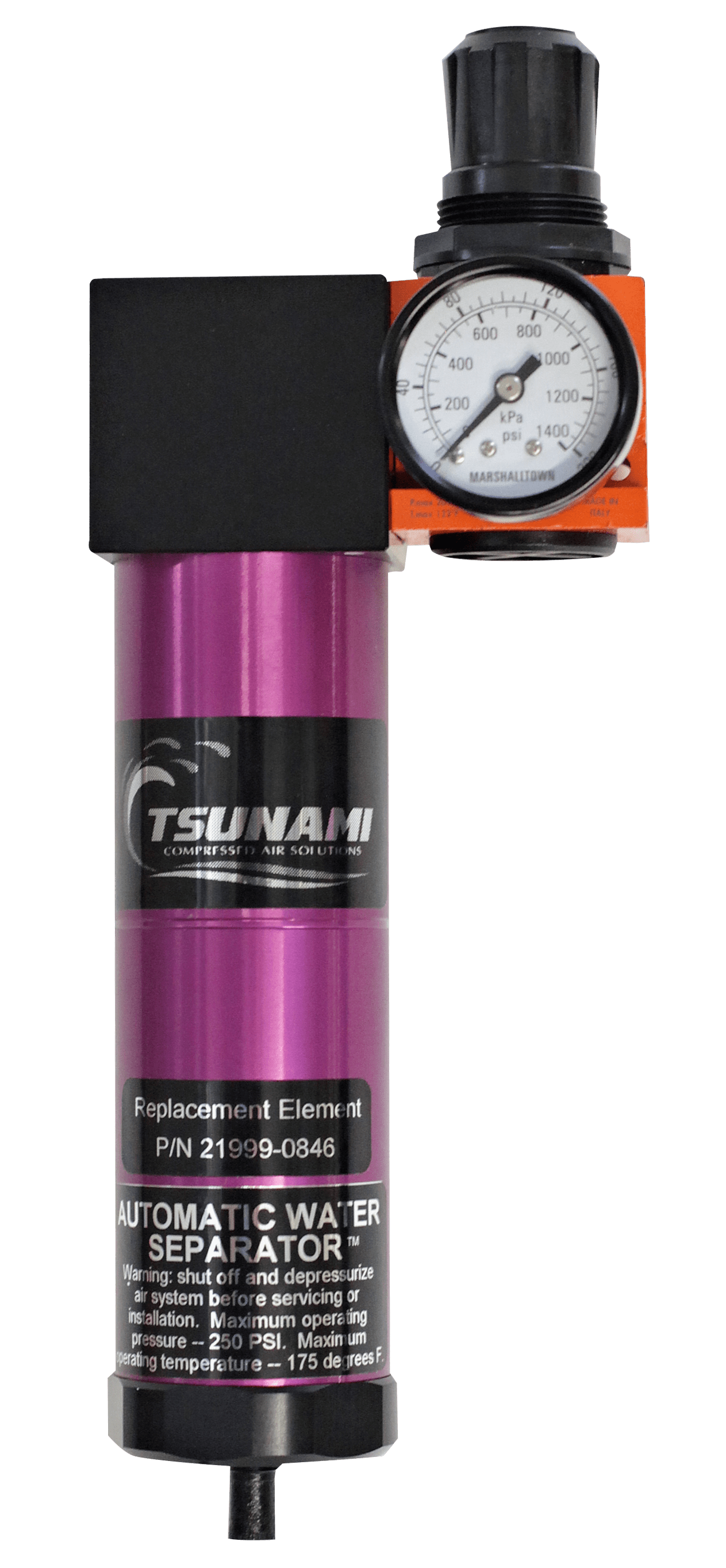

Package #8
Includes: Water Separator & Regulator
Typical Applications
- Laser
- Air Tools
- Tire Changers
- Automotive Lifts
- Robotics
- Machine Tools
Water Separators
The AIRID water separator removes water, up to 1 quart per minute and filters particulate down to 10 micron.
| DRAIN TYPE | 20 SCFM | 50 SCFM | 120 SCFM | 240 SCFM |
|---|---|---|---|---|
| Float Drain | J-0390 | J-0131 | J-0082 | J-0288 |
| Electronic Drain | ——- | J-0131-ED | J-0082-ED | J-0288-ED |
| Pneumatic Drain | J-0390-MM | J-0131-MM | J-0082-MM | J-0850-MM |
Oil Coalescing Filters
The AIRID oil coalescing filter removes oil aerosols down to .001 ppm and traps particulates down to .01 micron.
| DRAIN TYPE | 20 SCFM | 50 SCFM | 120 SCFM | 240 SCFM |
|---|---|---|---|---|
| Float Drain | J-0390-Z-FD | J-0131-Z-FD | J-0082-Z-FD | J-0289 |
| Electronic Drain | ——- | J-0131-Z-ED | J-0082-Z-ED | ——- |
| Pneumatic Drain | J-0390-Z-MM | J-0131-Z-MM | J-0082-Z-MM | ——- |
Activated Carbon Filters
The AIRID activated carbon filter removes oil vapor down to .003 ppm, removing odor and taste from the air.
| DRAIN TYPE | 20 SCFM | 50 SCFM | 120 SCFM | 240 SCFM |
|---|---|---|---|---|
| Float Drain | J-0390-AC | J-0131-AC | ——- | ——- |
Inlet / Outlet Port Sizes
Used for all Components: Water Separators, Oil Coalescing Filters and Activated Carbon Filters
| 20 SCFM | 50 SCFM | 120 SCFM | 240 SCFM | |
|---|---|---|---|---|
| Inlet / Outlet Sizes | 1/4″ | 1/2″ | 1″ | 2″ |
